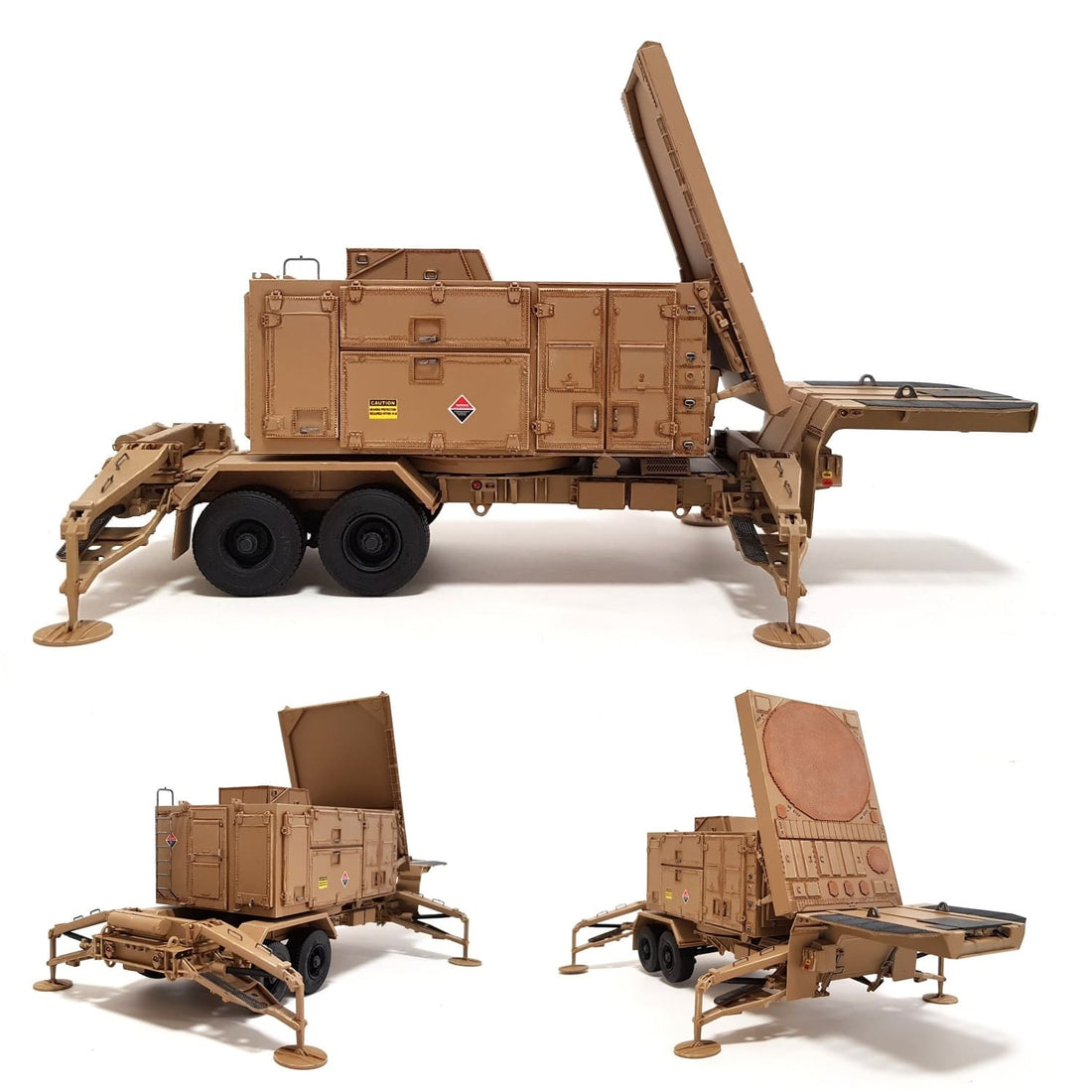

1:35 MIM-104 Patriot SAM System (PAC-2) Radar AN/MPQ-53 from TRUMPETER

1:35 MIM-104 Patriot SAM System (PAC-2) Radar AN/MPQ-53 from TRUMPETER

The MIM-104 Patriot is a surface-to-air missile (SAM) system, the primary of its kind used by the United States Army and several allied nations. It is manufactured by the U.S. defense contractor Raytheon and derives its name from the radar component of the weapon system. The AN/MPQ-53 at the heart of the system is known as the "Phased Array Tracking Radar to Intercept on Target" which is a backronym for PATRIOT.

The AN/MPQ-53/65 Radar Set is a passive electronically scanned array radar equipped with IFF, electronic counter-countermeasure (ECCM), and track-via-missile (TVM) guidance subsystems. The AN/MPQ-53 Radar Set supports PAC-2 units, while the AN/MPQ-65 Radar Set supports PAC-2 and PAC-3 units. The main difference between these two radars is the addition of a second traveling wave tube (TWT), which gives the −65 radar increased search, detection, and tracking capability. The radar antenna array consists of over 5,000 elements that "deflect" the radar beam many times per second. The radar antenna array also contains an IFF interrogator subsystem, a TVM array, and at least one "sidelobe canceller" (SLC), which is a small array designed to decrease interference that might affect the radar. Patriot's radar is somewhat unusual in that it is a "detection-to-kill" system, meaning that a single unit performs all search, identification, track, and engagement functions. This is in contrast to most SAM systems, where several different radars are necessary to perform all functions necessary to detect and engage targets.
